Flexible launch system
Flexible launch system
kg to 500 km SSO
kg to 2000 km Polar Orbit
kg to 6000 km MEO
kg to GTO
kg to LTO
kg to GEO

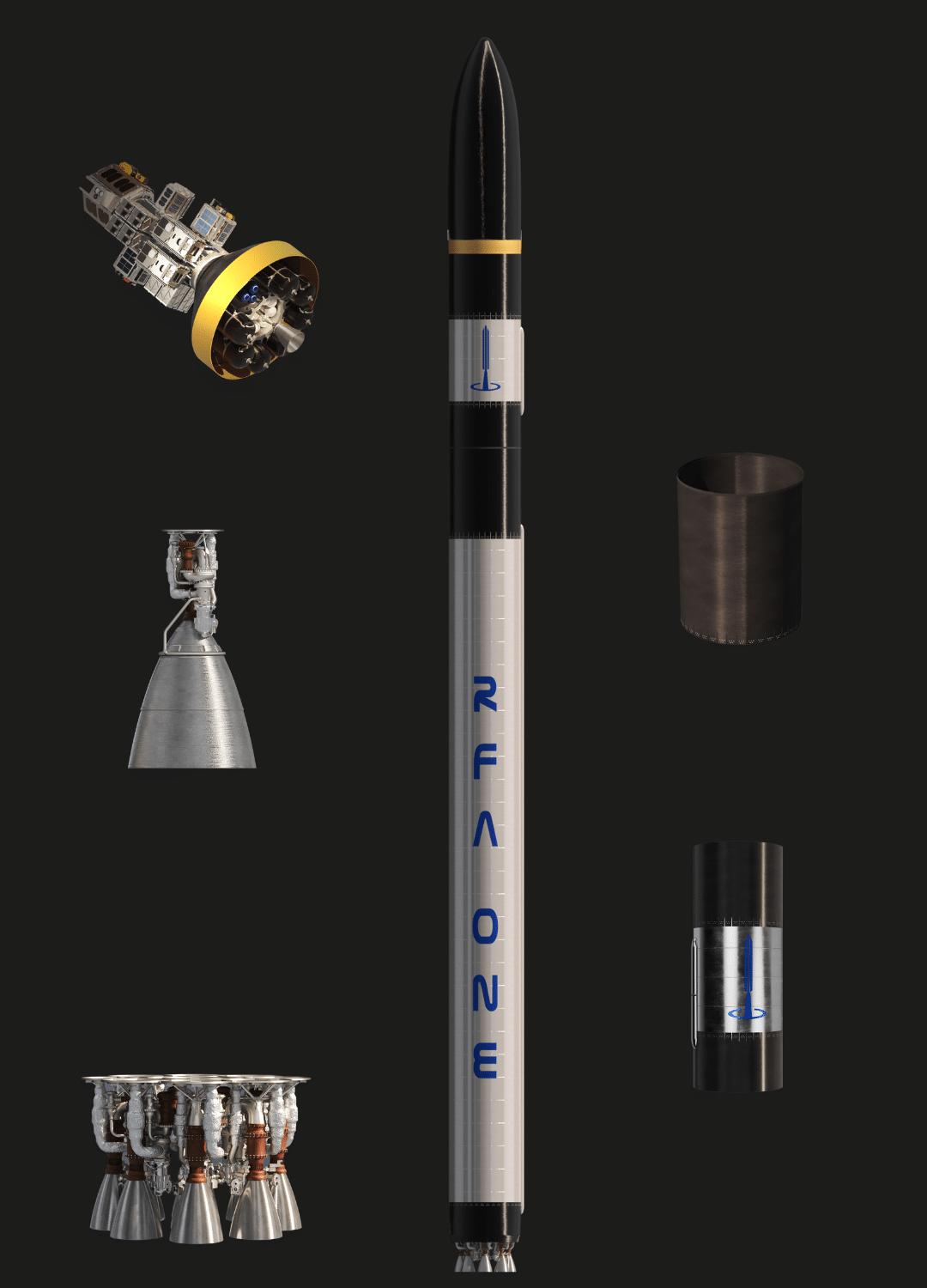

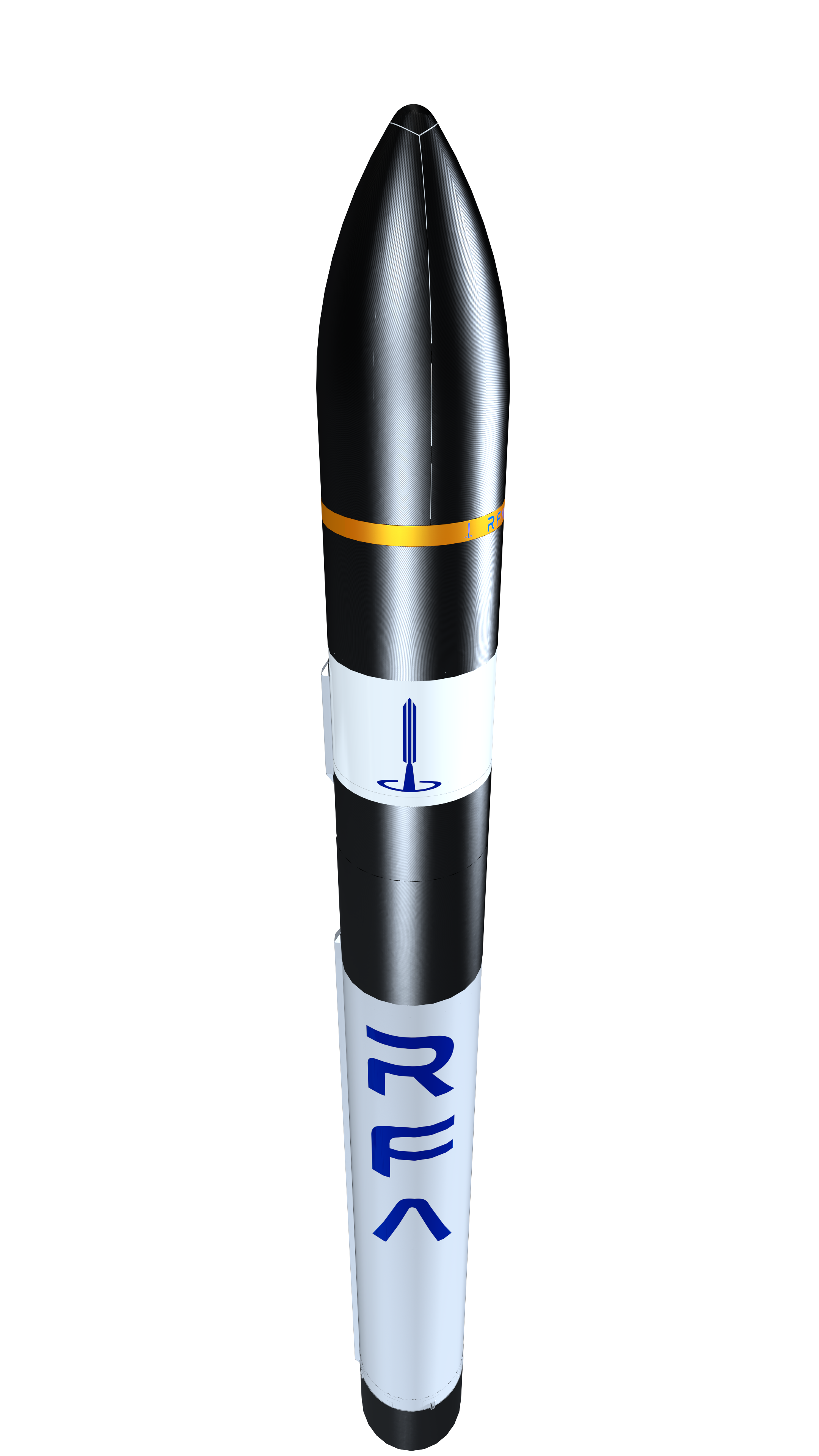

RFA ONE is a three-stage launch vehicle powered by RFA’s in-house developed Helix ORSC engines. The launcher is constructed of low-cost stainless steel, uses industrial components from the automotive, oil and energy industries, among others, and features an OTV called Redshift. Later variants of the launcher will allow recovery of the first stage and reusability of the engines.

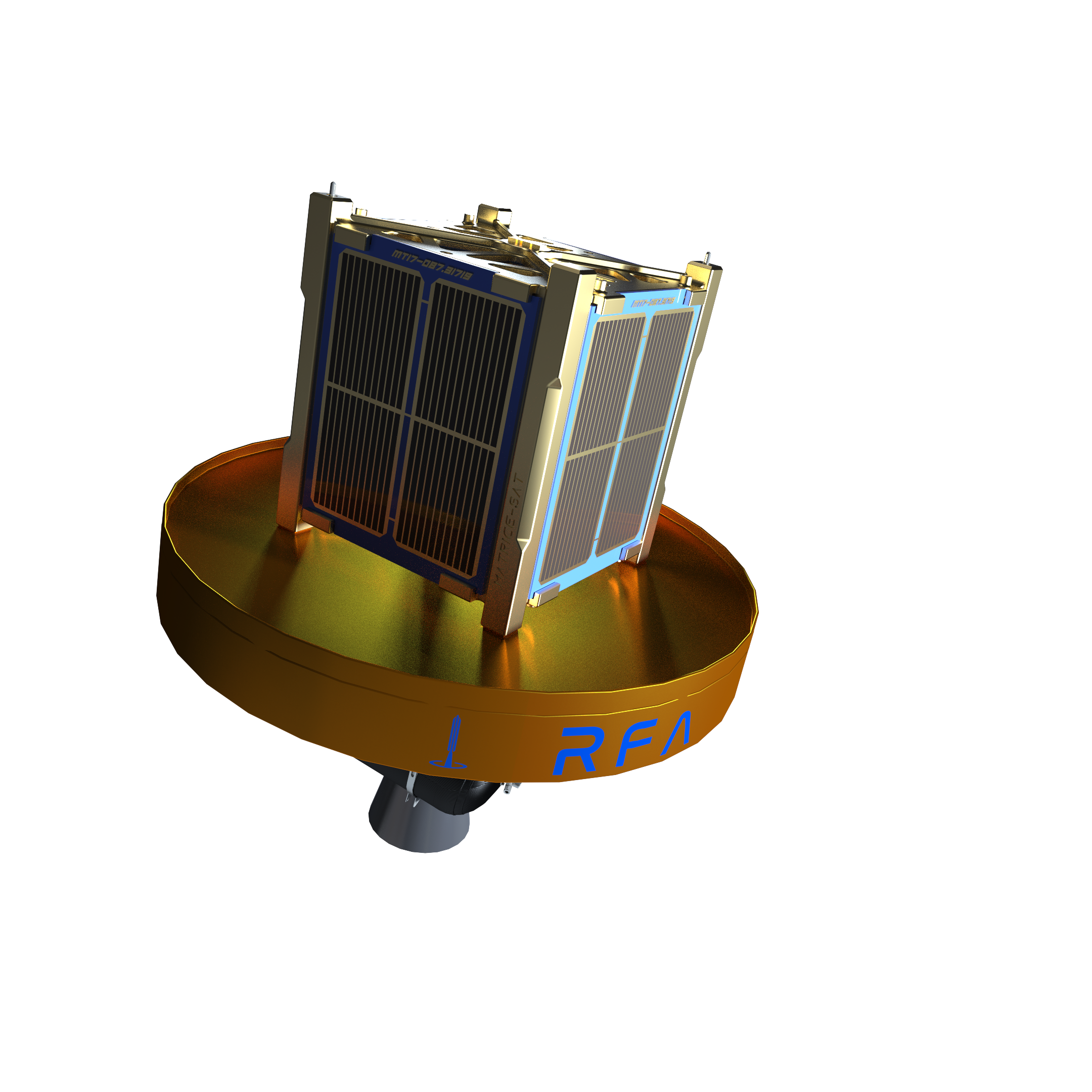

REDSHIFT OTV
Ensures accurate delivery to the desired orbit for every payload onboard, in mission profiles from LEO to GTO.

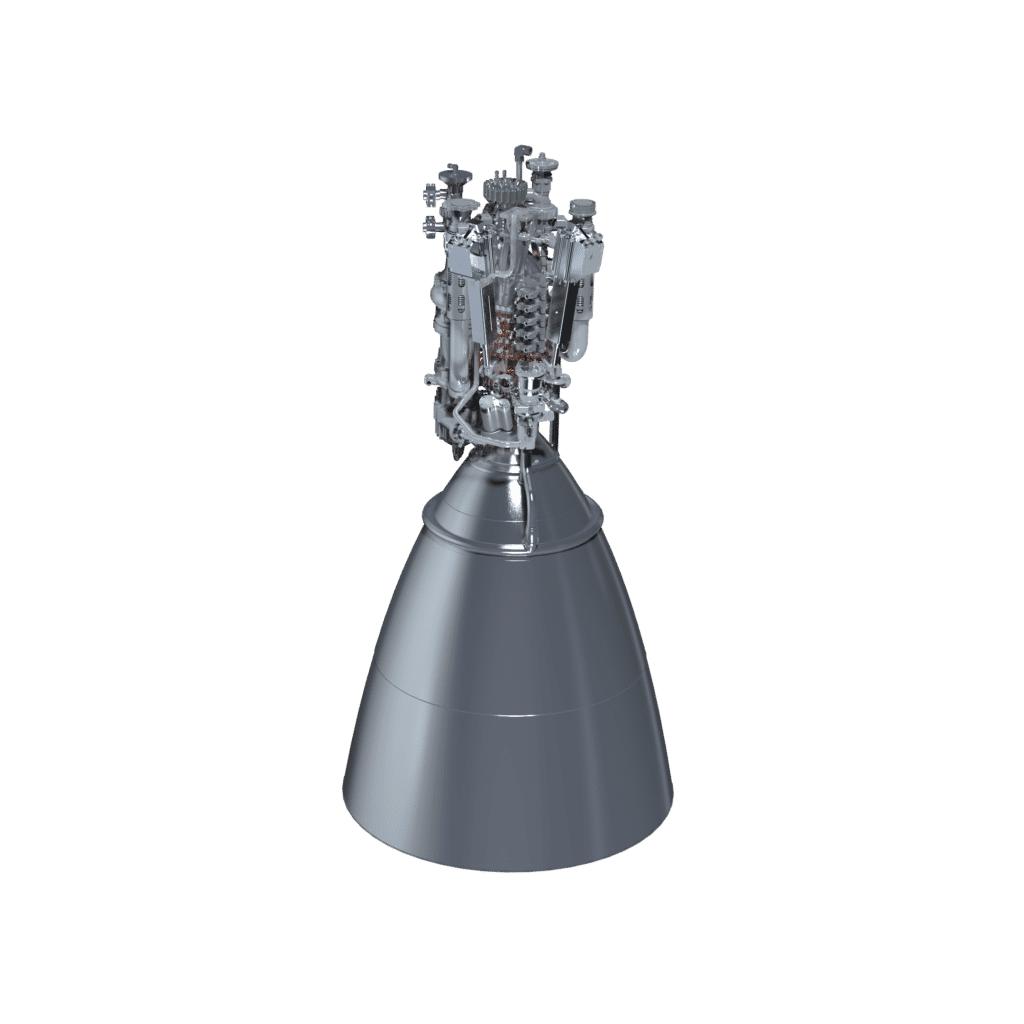

HELIX VAC ENGINE
Staged-combustion technology provides 30% higher efficiency than regular gas-generator cycle engines. The Helix engine and its turbopump are designed for
additive manufacturing and automotive scale serial production.

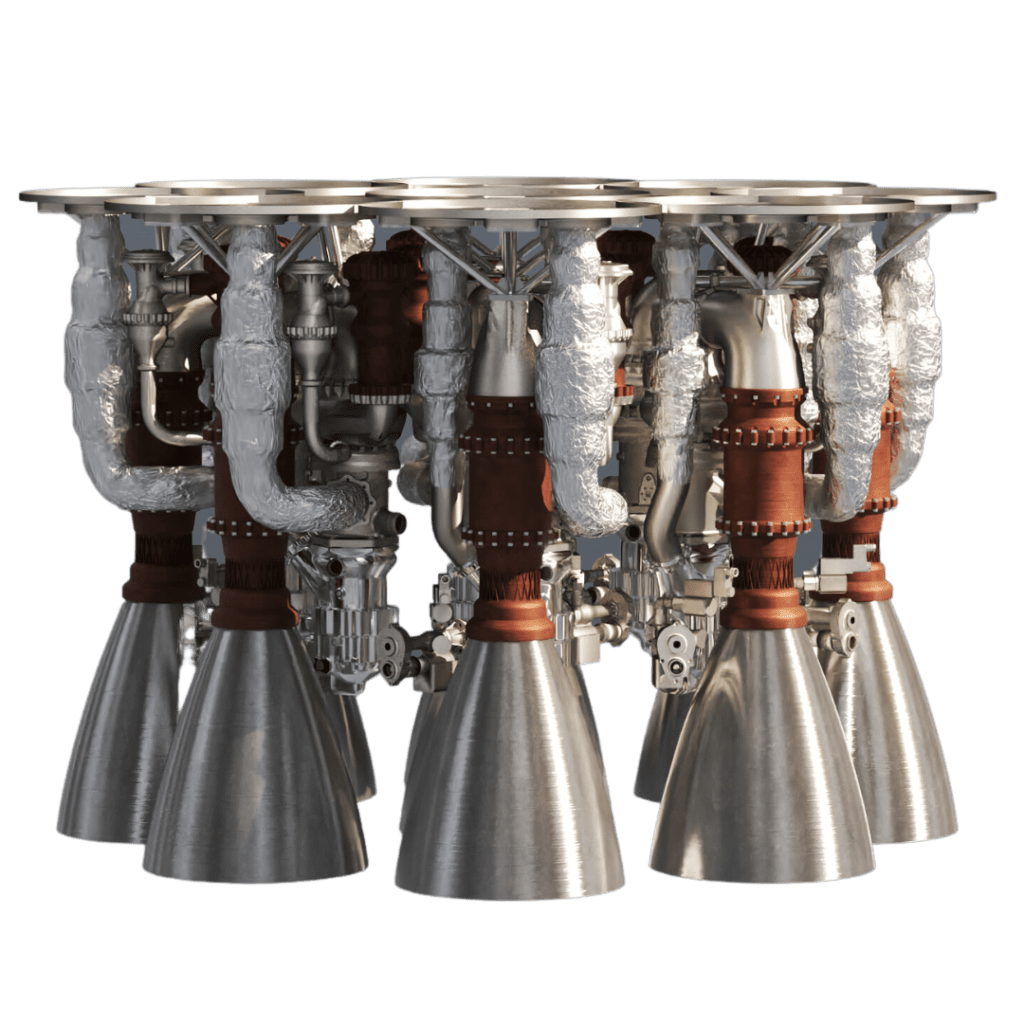

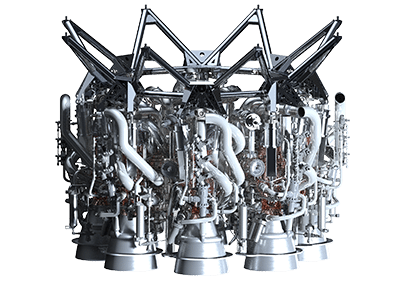

HELIX ENGINE CLUSTER
Cluster of 9 staged combustion Helix engines with sea-level nozzles. These run oxygen-rich with a more environmentally friendly RP1 version, are regeneratively cooled and all have TVC.

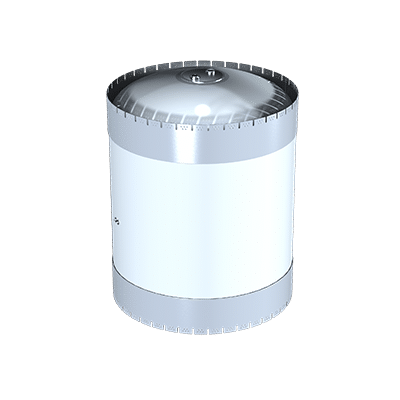

STAGE STRUCTURES
Common-bulkhead tank design from inexpensive stainless steel construction.
Validated by cryogenic proof test and flight ready.

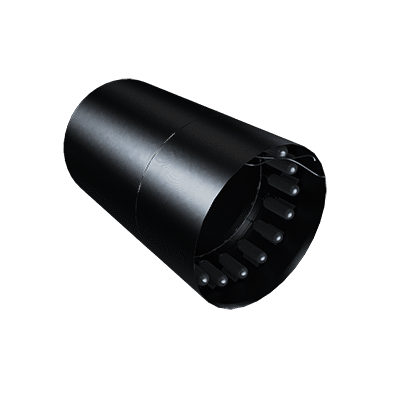

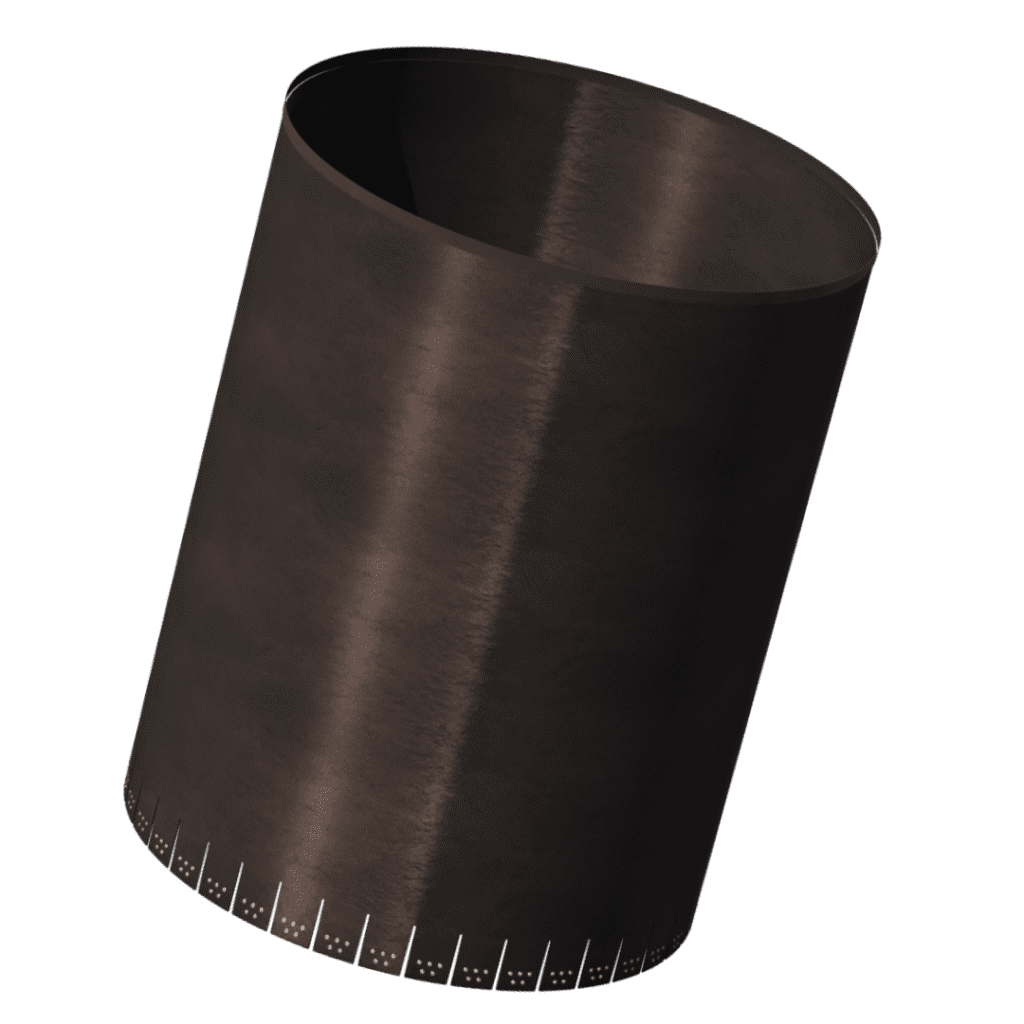

INTERSTAGES
Automotive grade composites applied on in-house developed automated tape-laying machine. Staging performed by pneumatic separation system.
Height 30 m
Diameter 2m
Stages 3
Engines 9 + 1
Ensures accurate delivery to the desired orbit for every payload onboard, in mission profiles from LEO to GTO.
Staged-combustion technology provides 30% higher efficiency than regular gas-generator cycle engines. The Helix engine and its turbopump are designed for additive manufacturing and automotive scale serial production.
Cluster of 9 staged combustion Helix engines with sea-level nozzles. These run oxygen-rich with a more environmentally friendly RP1 version, are regeneratively cooled and all have TVC.
Automotive grade composites applied on in-house developed automated tape-laying machine. Staging performed by pneumatic separation system.
Common-bulkhead tank design from inexpensive stainless steel construction. Validated by cryogenic proof test and flight ready.
Configurations

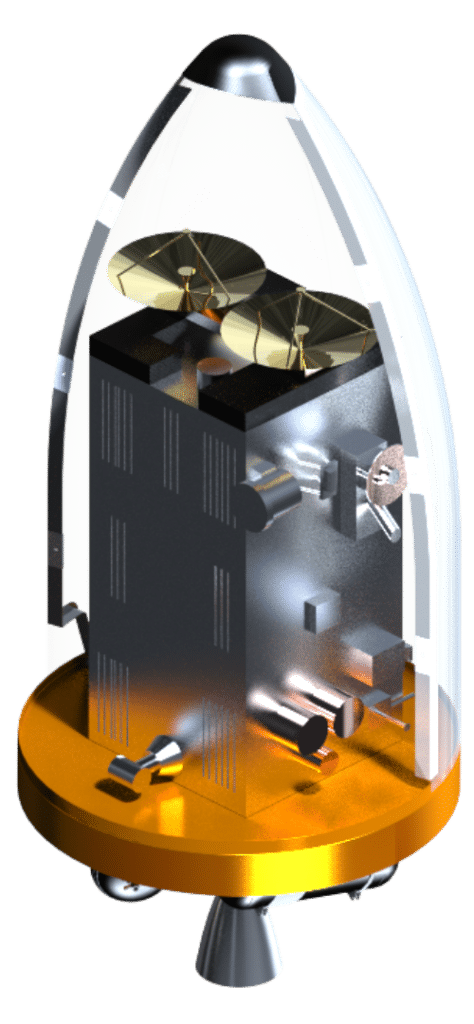

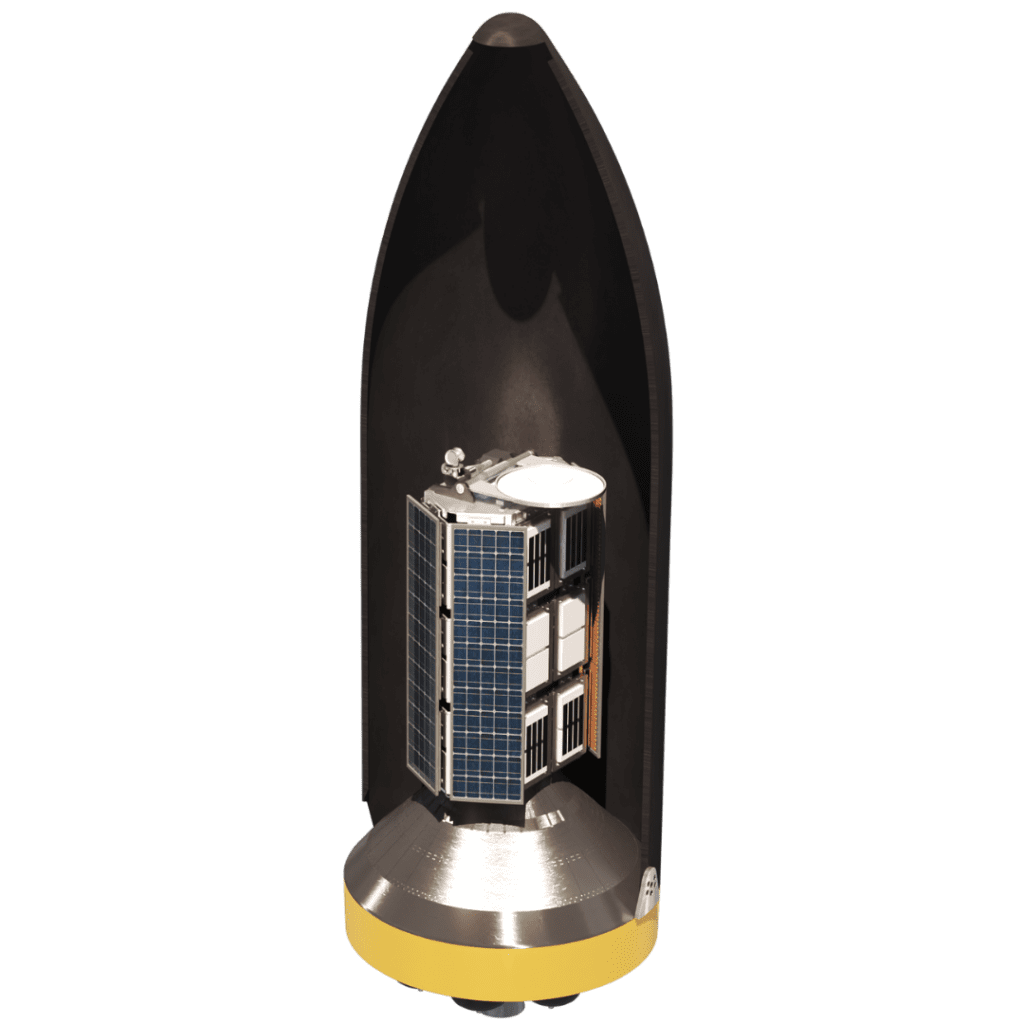

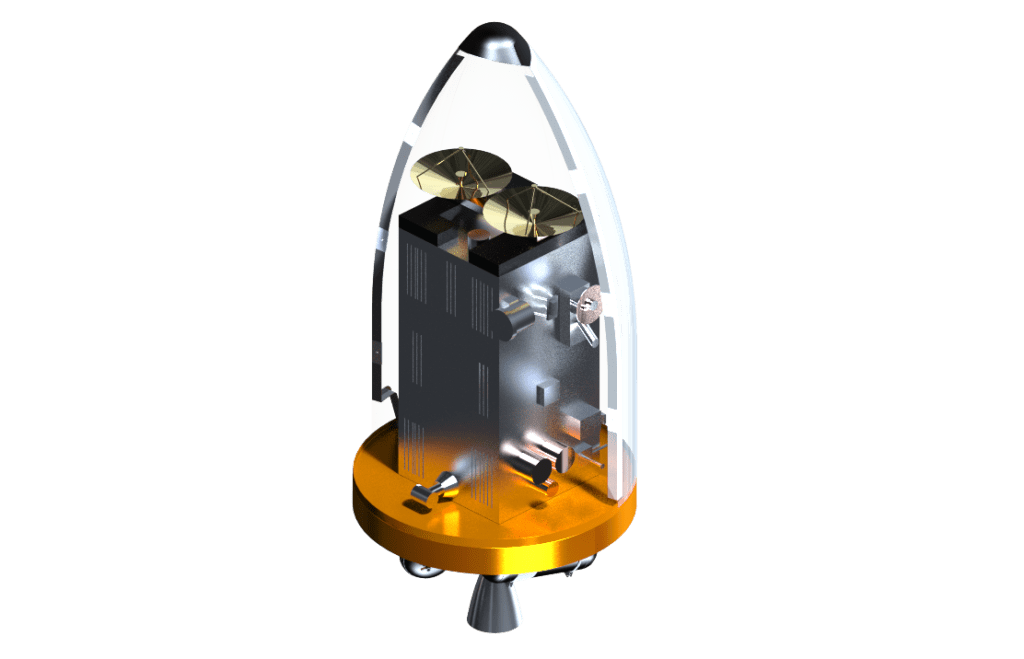

Dedicated
Payload can be directly mounted to the payload platform. This reduces complexity and cost.

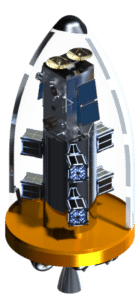

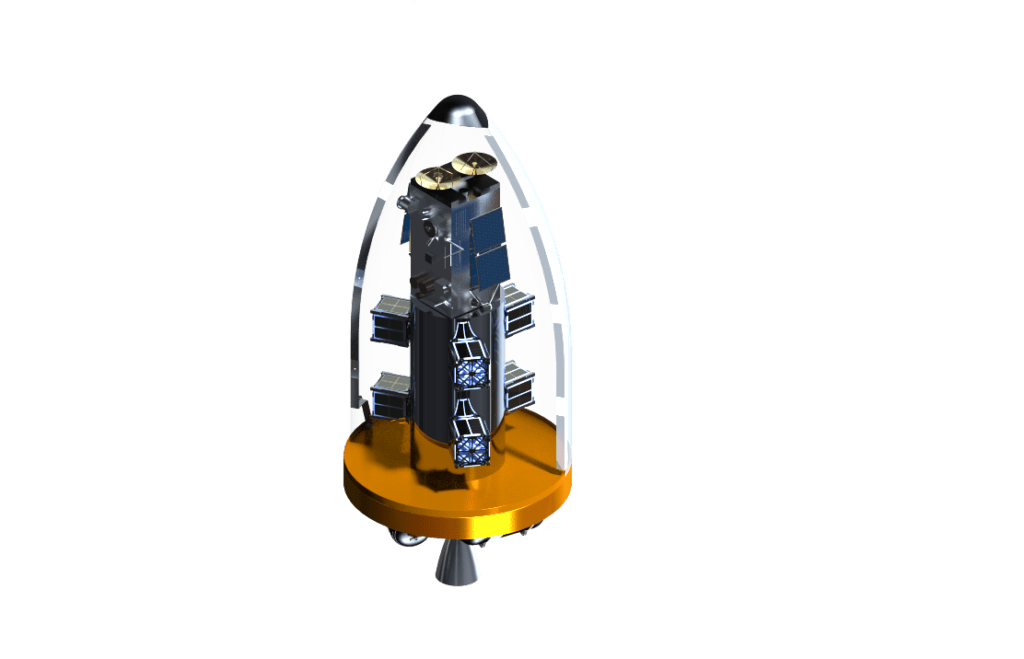

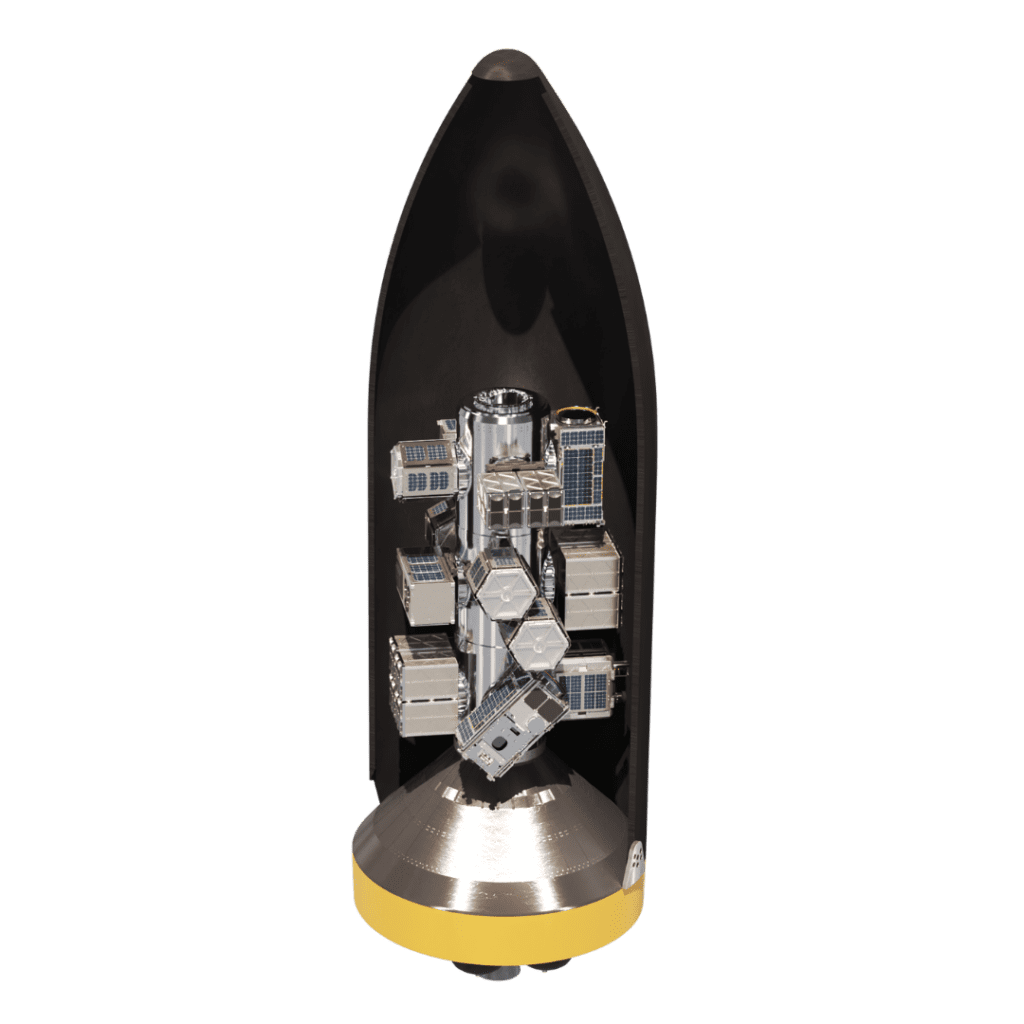

Rideshare
8”, 15” or 24” ports are available in the rideshare configuration. Customized configurations and a top slot are available for large spacecraft upon request.
Configurations
Dedicated
Rideshare
Payload can be directly mounted to the payload platform. This reduces complexity and cost.
8”, 15” or 24” ports are available in the rideshare configuration. Customized configurations and a top slot are available for large spacecraft upon request.
Height 30 m
Diameter 2m
Stages 3
Engines 9 + 1
Learn everything you need to know – RFA ONE
This document provides an overview of the RFA ONE launcher and Redshift OTV. It serves as input for initial mission planning and is superseded by mission specific documents
provided by RFA.
Learn everything you need to know – RFA ONE
This document provides an overview of the RFA ONE launcher and Redshift OTV. It serves as input for initial mission planning and is superseded by mission specific documents
provided by RFA.
